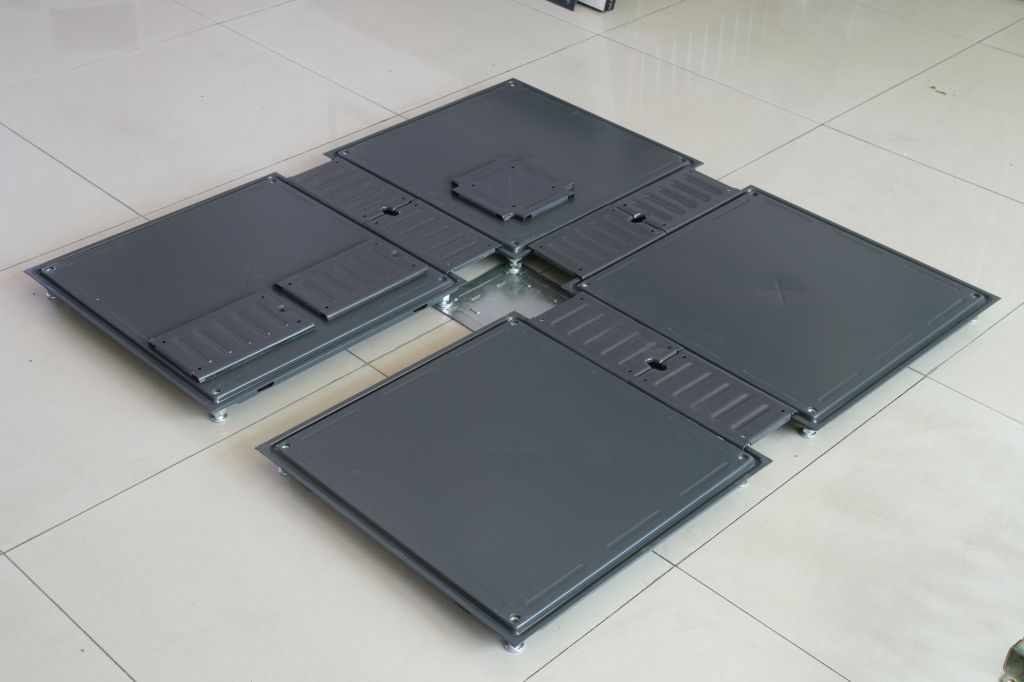

Full steel wire slot network floor

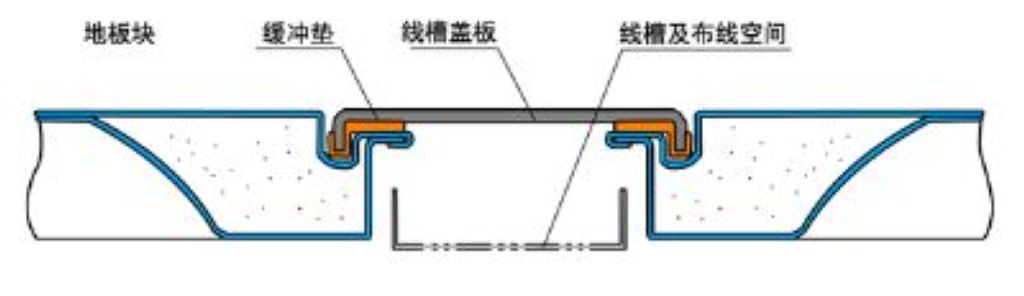

Product features: The steel plate and cement structure;with the better bearing capacity and anti-impact capacity;the surface with the static spraying;waterproof;fire-proof;dustproof;antisepsis;and the wire slot naturally formed between main boards. Scope

Product features:

The steel plate and cement structure;with the better bearing capacity and anti-impact capacity;the surface with the static spraying;waterproof;fire-proof;dustproof;antisepsis;and the wire slot naturally formed between main boards.

Scope of use:

The office building,telecommunication,communication and so on..the surface layer needs to be added with such surface layer material as the carpet.

Product parameters:

Size		Specifications	集中載荷（撓度=2mm）			均布載荷（N/㎡） Uniformly distributed load	極限集中載荷（N）Limit of concentrated load	滾動載荷（N） Uniformly distributed load
國際標準	國家標準		ib	N	Kg
FS700	CQ	地板規格：50050025mm 組合規格： 600*600mm 線槽寬度： 100mm	700	1960	200	9720	5880	980
FS800	Q		800	2950	300	12500	8850	2255
FS1000	B		1000	4450	450	23000	13350	3560
FS1250	Z		1250	5560	560	33000	16680	4450
